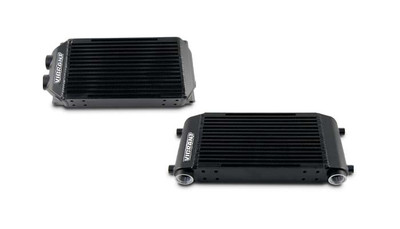

Oil Cooler Assemblies

Oil Cooler Assemblies

$349.99 - $423.99
(No reviews yet)
Description

Vibrant Performance is expanding its oil cooler program with the introduction of our new line of Oil Cooler Assemblies, which come complete with welded end tanks and individually leak tested.  Suitable for a wide variety of applications, these assemblies provide superior engine oil cooling and will save fabricators and end users time and money as there is no need to make and weld custom end tanks.


All Oil Cooler Assemblies have an offset fin design in the oil flow path, increasing the surface area available for heat exchange. This results in improved heat transfer efficiency, allowing more effective cooling for the oil.


Offered in two different sizes (10"x6" and 12"x12") and each size is available in single pass and dual pass flow configuration.


Feature a heavy-duty bar and plate construction which provides high-pressure capabilities, compactness, and excellent durability.


An Aluminum Oil Cooler Shroud is sold separately which can be modified to add fans or ducting for increased cooling efficiency. Feature Cast Aluminum End Tanks with integrated -12 ORB female ports.


We have also integrated M8x1.25" mounting points to give installers greater rigidity when mounting the assembly.
